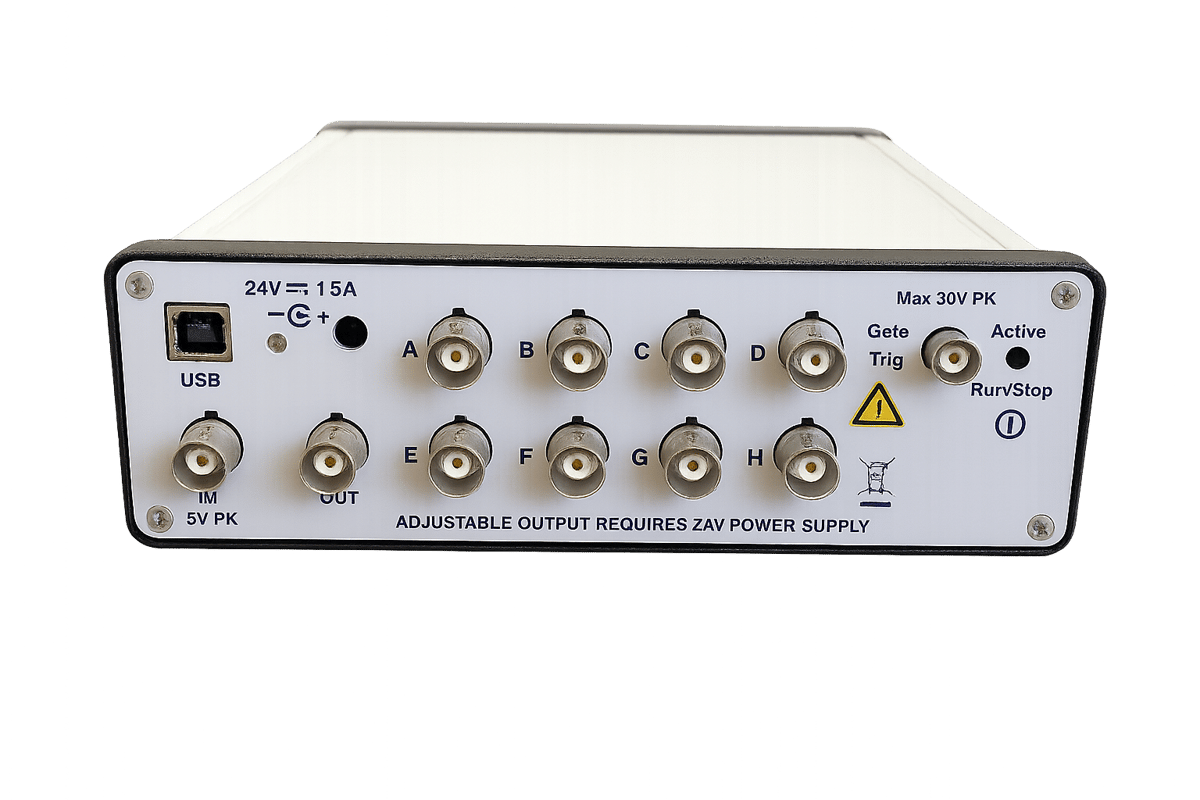

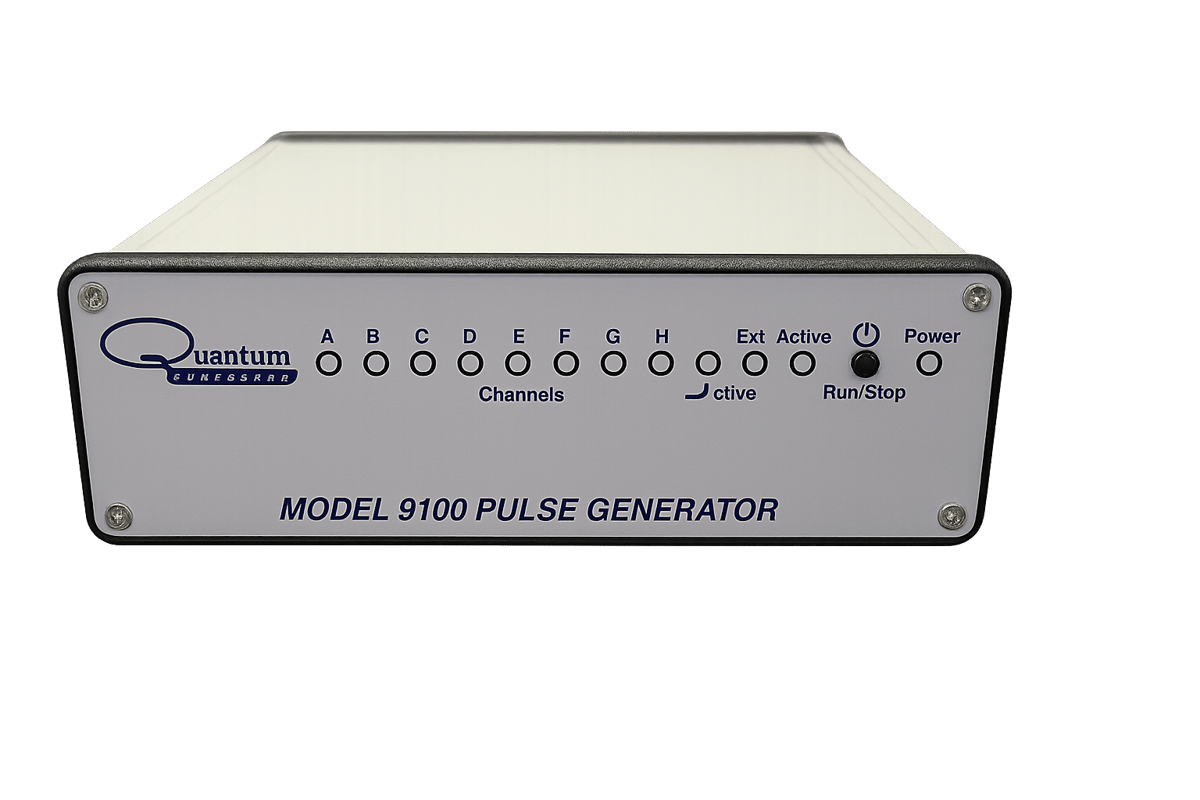

Digital Delay Pulse Generator

The next generation of compact pulse generators is here.
This unit will help labs with size and cost. The 9100 is 7.1" x 6.7" x 2.2" and is powered by USB 3.0 or higher, or a 24VDC external power supply.

• 8-channel only (9108)
• Full adjustable output mode up to 20V when powered with a 24VDC external supply.
•  TTL mode operation can be powered by a USB 3.0 or higher port
• Clock input and clock output signals
• Trigger or gate input.
•  Configurable output channel connections on request

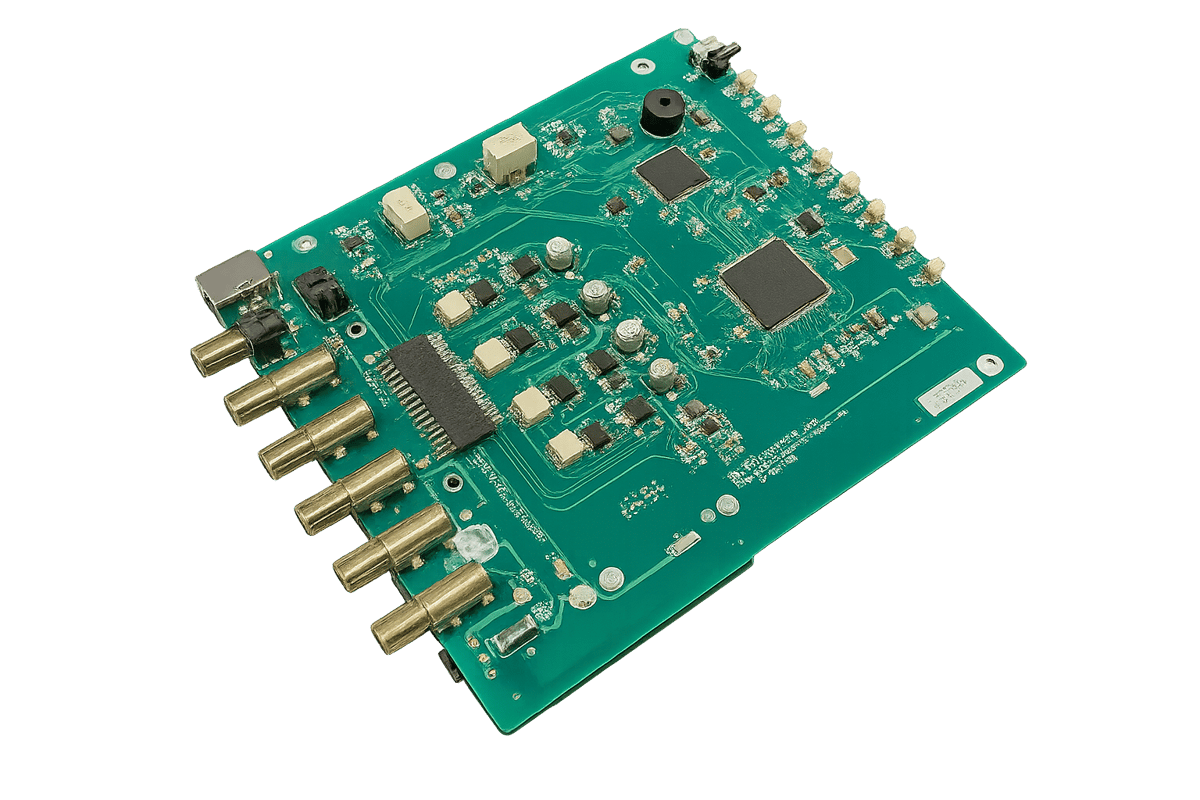

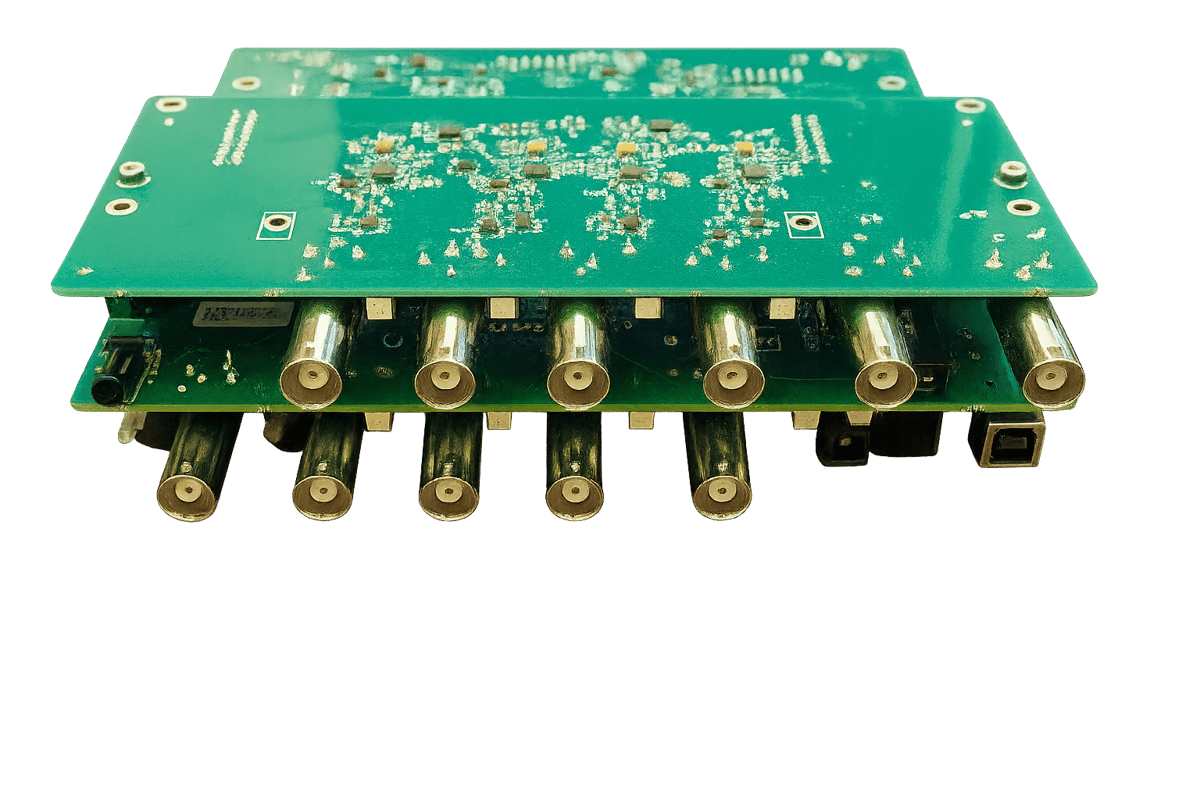

Digital Delay Pulse Generator

OEMs and research labs looking for a compact but powerful timing device.  The 8100 board-level in 4-channel or 8-channel is your answer.
This unit will help labs with size and cost. The 8100 is 6.3" x 6.9" x 1.5" and is powered by USB 3.0 or higher, or a  24VDC external power supply.

• 4-channel (8104) or 8-channel (8108)
• USB or optional RS232 interface
• Full adjustable output mode up to 20V when powered with a 24VDC external supply
•  TTL mode operation can be powered by a USB 3.0 or higher port
• Trigger or gate input

•  Configurable output channel connections on request
