OEM Timing Devices

• Output Channels: 2 or 4
• Rep Rate: 5MHz/20MHz
• Timing Resolution: 10ns/ 5ns
• Timing Jitter: 250ps
• Output: Adj: 3.3 to 5.0v
• 164mm x 155mm x 22mm

Economical timing for straightforward OEM integration
A proven 2- or 4-channel platform for systems requiring reliable pulse generation, delayed triggering and synchronization without the cost or complexity of a high-end timing board.

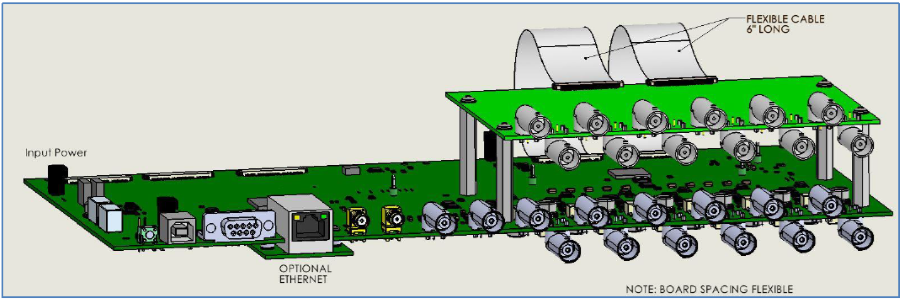

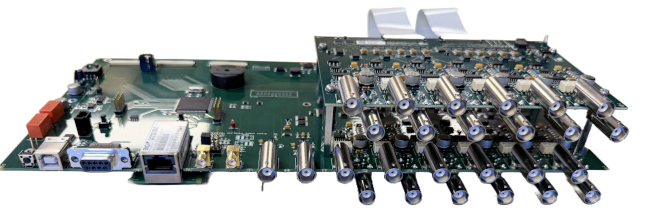

• Output Channels: 12, 24 or 36
• Rep Rate: 20MHz
• Timing Resolution: 250ps
• Timing Jitter: 50ps
• Output: TTL/CMOS
                Adj: 2 to 20v
• 338mm x 163mm x 22mm (12-ch)
  338mm x 163mm x 40mm (24, 36-ch)

Scalable precision timing for high-channel-count systems
Built for systems requiring 12, 24 or 36 synchronized outputs without combining multiple independent timing instruments. The 8550 provides the performance of Quantum Composers’ high-end timing architecture in a board-level platform designed for larger, more complex OEM systems.

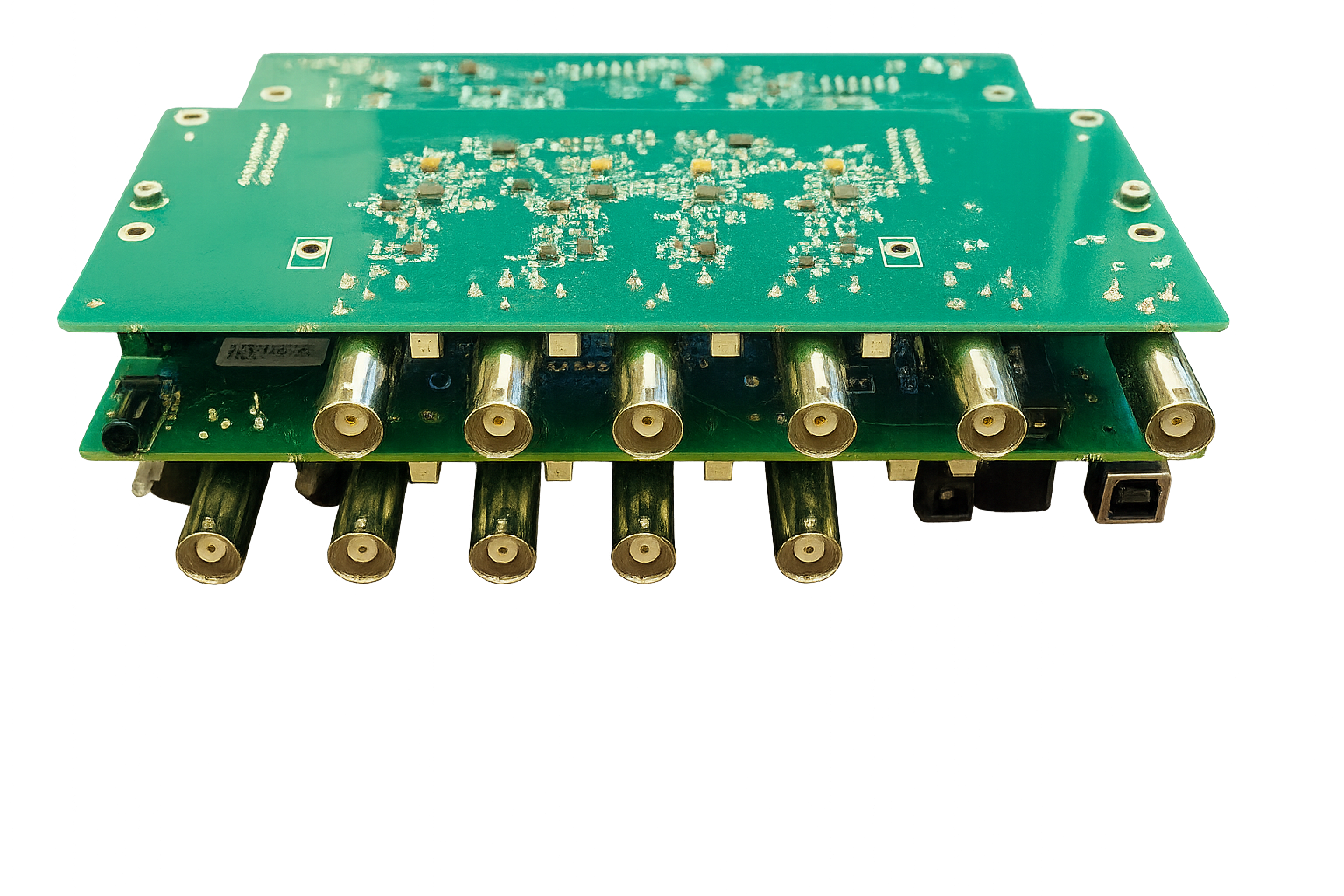

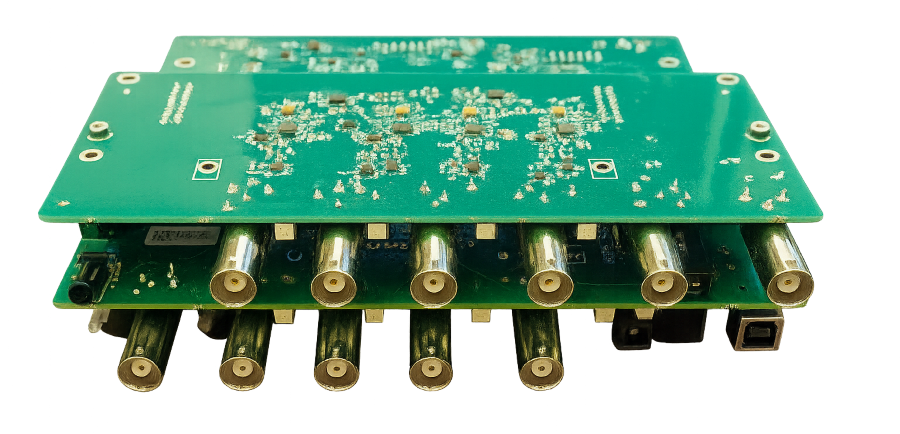

• Output Channels: 4 or 8
• Rep Rate: 20MHz
• Timing Resolution: 250ps
• Timing Jitter: 50ps
• Output: TTL/CMOS
                Adj: 2 to 20v
• 164mm x 176mm x 20.5mm (4-ch)
  164mm x 176mm x 38mm (8-ch)

Compact high-performance timing for 4- and 8-channel systems
Designed for OEMs and research platforms requiring 250 ps timing resolution, low channel-to-channel jitter, flexible outputs and multiple communication interfaces in a compact board-level package.

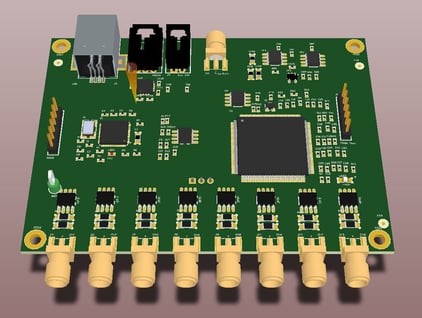

A compact 4- or 8-channel board under development for cost-sensitive OEM systems that need essential pulse and delay generation without the complete feature set of the 8100.

• Output Channels: 4 or 8
• Rep Rate: 20MHz
• Timing Resolution: 4ns
• Timing Jitter: 100ps
• Output: Adj: 2 to 12v
• 100 mm x85 mm x 20 mm

Preliminary specifications—subject to change
