MiniJewel Lasers & Systems

Pulsed Diode Pumped Solid State Nd:YAG Lasers

The MiniJewel is a compact, conductively cooled, laser with a fundamental output of 1064nm. The rugged resonator design allows for less misalignment than other lasers. This multi-mode laser weighs 1.4kg and with a 165mm x 97mm x 36mm footprint, it is perfect for portable applications or customers with limited space requirements.  Included is our MiniJewel software which the user can utilize to control energy, firing mode, and frequency.

Accessories and options can be added to optimize the laser to your application.   (divergence vs energy).



Applications Information:

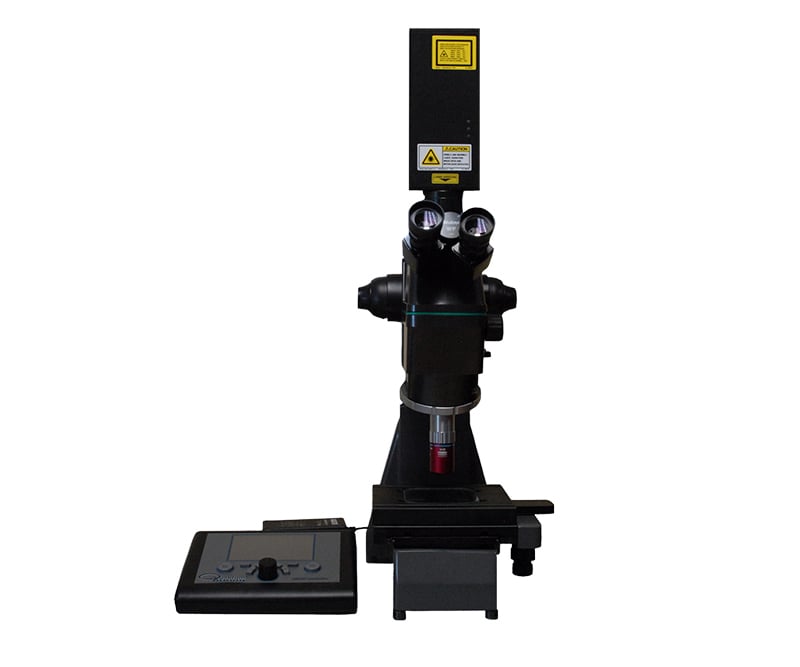

The MiniJewel lasers were designed to be on microscopes and small gantry systems or portable systems.  The power supply is no bigger than your standard laptop charger – providing a smaller footprint for the laser and its power supply.  This laser will also be used for LIDAR, PIV, Pumping, TFT-LCD repair, MicroLOED repari, ablation and mass spectroscopy applications.

For pricing and orders please contact sales@quantumcomposers.com.

Laser Features
  • Energy Max: 8mJ @1064nm

  • Rep Rate: 1 to 30Hz* Rep Rate

  • Wavelengths: 1064nm, 532, 355 & 266

  • Beam Divergence: (mrad) ≤ 6.0

  • Beam Diameter: (mm) 1.5 ± 0.5mm

  • Pulsewidth:  6.0 ± 2.0 ns

  • Dimensions: 165mm x 97mm x 36mm

  • Weight: 1.4kg

  • Power supply: 36-50VDC

  • Efficient, reliable diode pump

  • Remote Interlock, Input Trigger

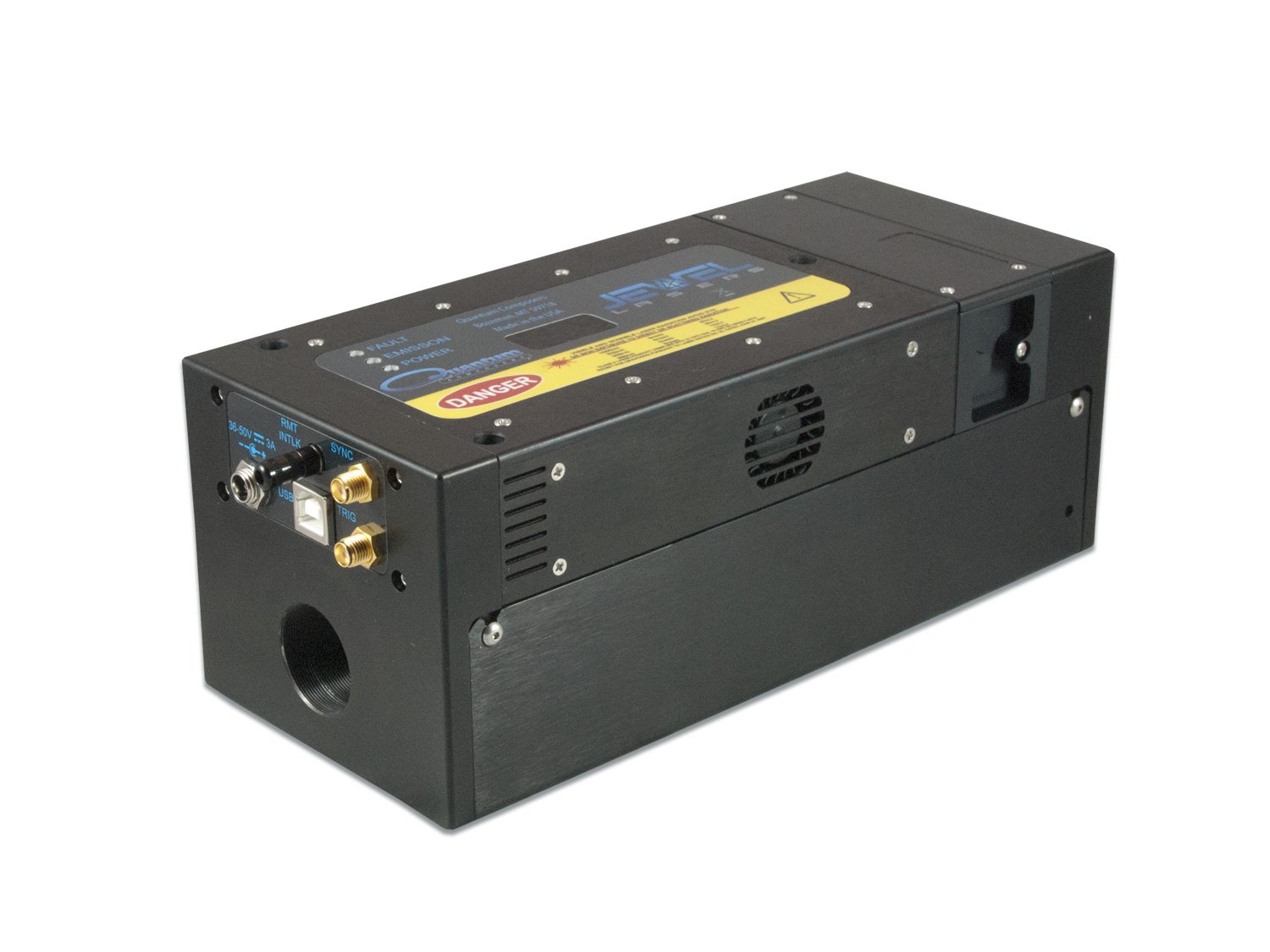

MiniJewel System Features
  • Energy: 4mJ @ 1064nm

  • Rep Rate: Single Shot to 30Hz* Rep Rate

  • 1064/532/355/266 Wavelength Selection

  • Pulsewidth: 6.0 ± 2.0ns

  • Size: 233mm x 140mm x 87mm; 2.8kg

  • Energy control, beam sizing & shape

  • High/Low energy modes

  • Remote Interlock, Input Trigger, Synch out signal

  • Fast throughput with tact times less than 1sec

  • MiniJewel System Software​

* higher rep rate available with proper cooling

Applications
  • LIBS

  • LIDAR

  • Microablation

  • PIV

  • Marking

  • Micromachining



*Customization & OEM Available
QUICK SPEC MATCH:

  Nd:YAG DPSS

  8mJ Energy

  30Hz Rep Rate

  1064nm, 532, 355, & 266
