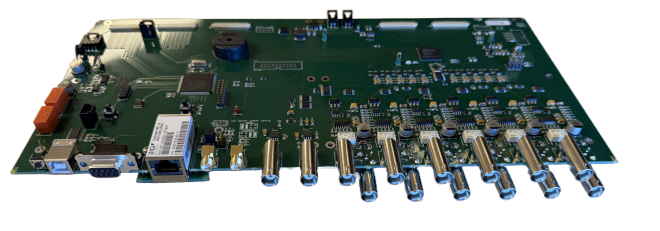

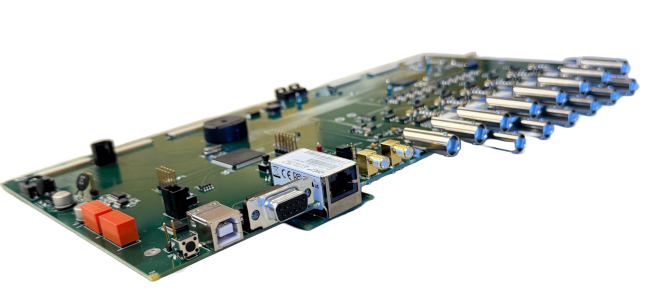

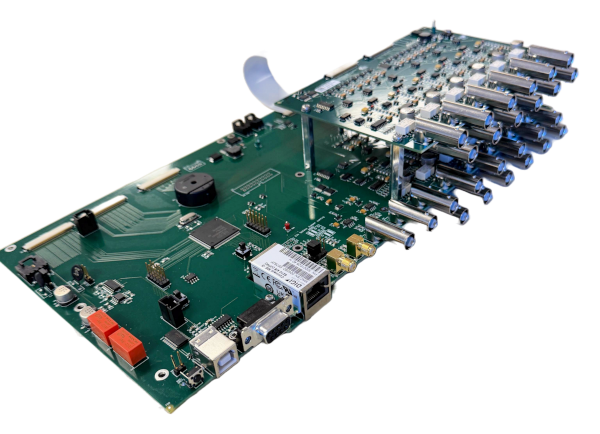

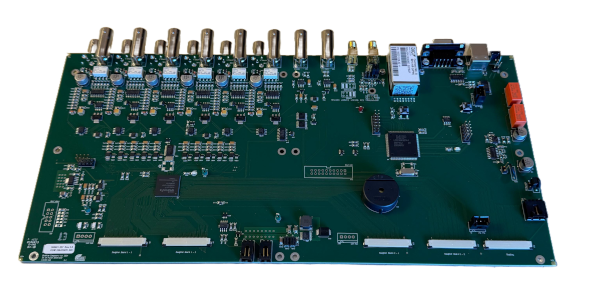

Quantum Composers now provides board level digital delay pulse generators with up to 36 channels. The 8550 series board products carries industry leading specifications in a wide range of channel options of 12, 24 and 36 channel outputs.
These units provide precision timing and synchronization to effectively trigger any series of events or necessary equipment with up to 36 independent outputs, dual inputs with gate/trigger or optional dual trigger, and an external clock reference input.
Channels: 12, 24 or 36 Independent Channel Outputs
Rep Rate: 20MHz
Period Resolution: 4ns
Delay/Width Resolution: 250ps
Jitter: < 50 ps
Output: TTL/CMOS Adj: 2 to 20v
Comm Ports: USB, Ethernet, RS232
Optional: TZ50 High Impedance
Warranty: Full 2-Year Warranty
Service: Integration Assistance, Full Customer Support
Demo: 30-Day Demo Period
Rentals: Rental Not Available For This Model
Datasheet
Manual
1ns or 250ps Timing
<400ps Jitter
2, 4, or 8 Outputs
Board level with optional power supply
