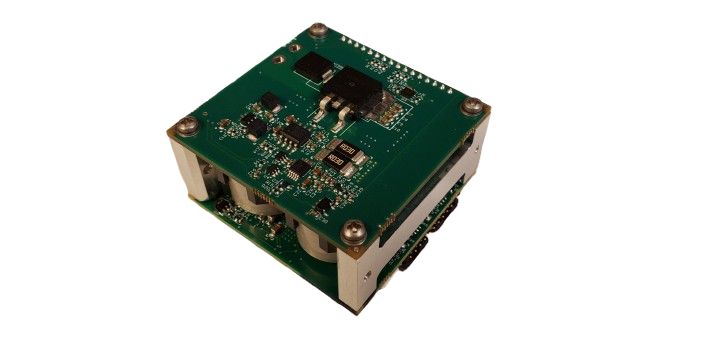

The QC-DD is a compact, lightweight pulsed current source designed to drive laser diode bars and arrays. This units provides pulsed output currents to drive laser diodes for pumping solid-state lasers.
Current Amplitude: 0-130A
DC Input Voltage: 12-50VDC
Pulse Width: 0-300us
Pulse Rise Time: <10us
Pulse Rate: 1-50Hz
Compliance Voltage: 3-36 VDC
Power Consumption (Average)
Enabled/Standby: 1.3W
1Hz, 100A, 200us: 2W
5Hz, 100A, 200us: 5W
10Hz, 100A, 200us: 8W

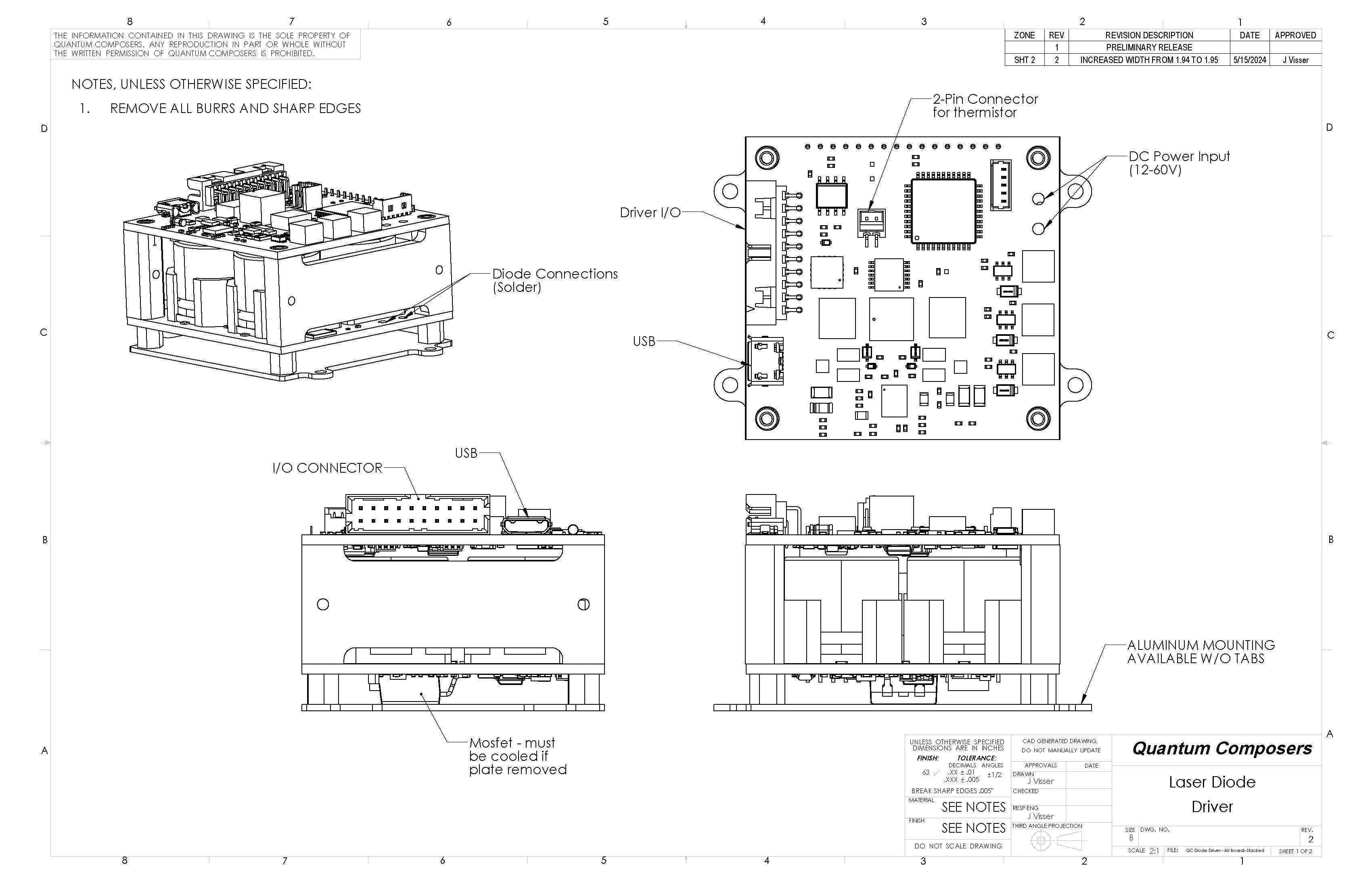

Dimensions:
2" x 2" x 1.37" w/ mounting plate
2" x 2" x 1.33" w/o plate
Weight: 3.5oz
Operating Temperature Range: -25C to +50C
Used with MicroJewel
Or own laser
Warranty: Full 2 Year Warranty
Service: Integration Assistance, Full Customer Support
