Custom & OEM
Precision Timing Solutions for Scientific & Industrial Electronics

Repackaging, Branding & Fully Custom Instruments

Our engineers assist customers in integrating technology into custom systems and designs, from product branding to fully custom timing devices.

  • Off-the-shelf precision timing boards / modules (delay generators, multi-channel trigger, event timers)

  • Custom board-level designs / modules to integrate into your system

  • Full instrument integration (timing + control + interface)

  • Supporting firmware / FPGA / software / API

  • Calibration, validation, environmental / robustness options (temperature, EMI, vacuum, etc.)

Barrier removal: For many clients, designing precision timing from scratch is expensive and risky; position your modules/boards as a lower-risk, faster path to high-precision integration with our vast expertise.

Our known experience can help offer accuracy, low jitter, deterministic timing, synchronization, nanosecond / picosecond resolution, modular board-level integration, turnkey OEM modules, etc.

Technical Capabilities / Specs

  • Delay range, resolution, jitter, channel count, outputs, input trigger support

  • Interfaces: TTL, LVTTL, LVDS, optical, fiber, USB, Ethernet, PCIe, etc.

  • Synchronization & distribution: clock sync, multi-board sync, daisy-chain, bus, time-stamping

  • Environmental options: temperature control, shock/vibration, EMI shielding, vacuum compatibility

  • Calibration and traceability

Request More Information

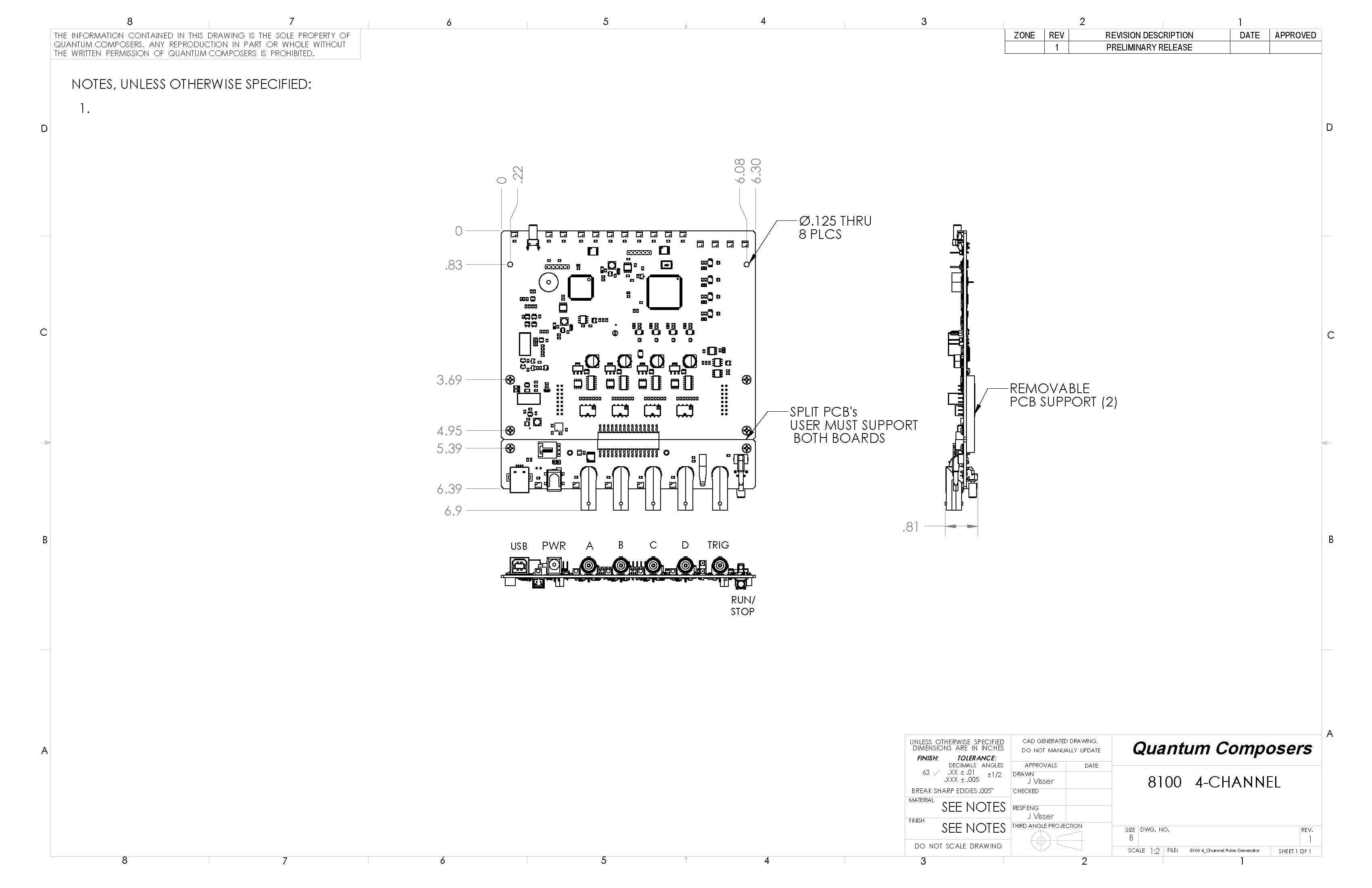

8100 4_Channel Pulse Generator

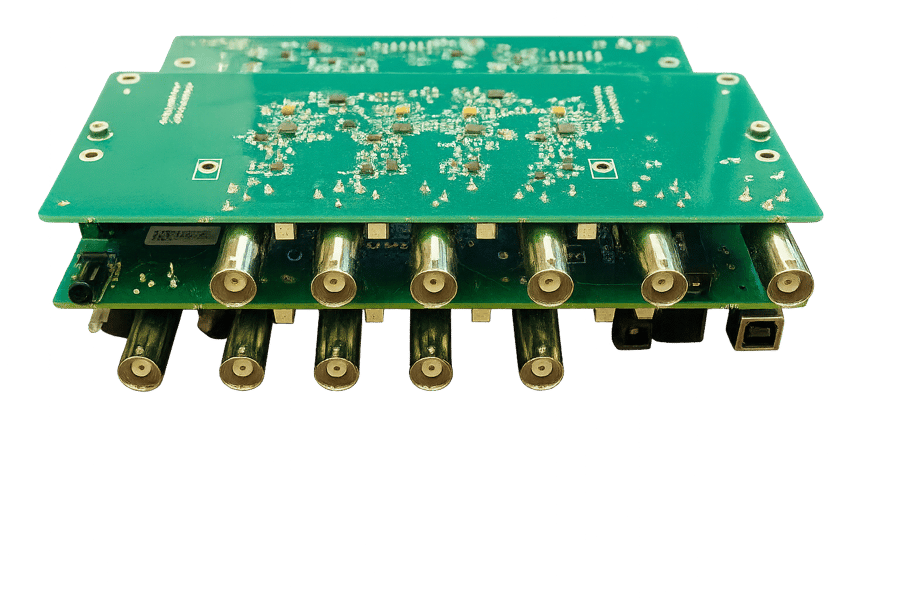

OEM board

Past Applications

  • Photonics / Laser systems
  • Robotics & automation with high-speed sensors
  • Time-of-Flight / Mass Spectrometry / LIBS / TOF-MS
  • Particle / Nuclear Physics / Accelerators
  • High-Speed Imaging / PIV / Flow Diagnostics
  • X-Ray / Flash Radiography / Imaging Systems
  • Automotive / Crash / Safety testing
  • Aerospace / Defense / Radar / LIDAR
  • Quantum / Atomic Physics / Metrology / Time Standards
  • Medical Imaging / Diagnostic equipment
  • Telecommunications / Time Distribution / Synchronization Infrastructure
  • Scientific Instrumentation / Test & Measurement

Let us turn your ideas into reality

For more than 30 years, Quantum Composers has been helping customers integrate technology into custom systems and designs. With proven case studies (electronically triggered systems, PIV master timers, TOF-MS, X-ray, airbag/test events), to integration support and a partnering approach. We can help with customization to your specs (channel count, delay range, interface, packaging)

Custom Case Studies

miscellaneous-768w_edited
OEM for Partners

Extending Capabilities

An existing OEM needed the burst count extended and a special gate/wait function. In addition to the many OEM/Custom projects that take considerable engineering efforts we also are happy to help our customers, help their customers.
Custom-Master-Timer
2D PIV Fluid Flow Study

Custom Master Timer

Quantum has worked with this OEM many times. When they needed new specifications, new algorithm and upgrades software Quantum Composers jumped in to assist. This is the master timer needed to automate control of laser pulses, cameras, and timing to external signals.

oem-laser-3
Medical Lasers

System Laser Sight

Lasersight's Erbium technology leads the market in design innovation. Our custom CrystaLase Erbium Laser has consistently proven itself as easier to use, has the highest power available and produces greater tissue effects for cosmetic surgery.

Medical Lasers

Dental Laser Ablation

A leading manufacturer of regenerative periodontal therapy devices turned to Quantum Composers to double their production to meet dental laser demands. Quantum produced 200 6-watt free-running variable pulsed Nd:YAG dental laser heads in under a year from initial scope of work to the production of actual units. Continue reading on the blog.
LIBS Mass Spectroscopy

TOF Mass Spectrometer

Quantum Composers partnered with this OEM to produce a LALI-TOF-MS (laser ablation laser ionization time-of-flight mass spectrometer) to help ensure quality in agricultural and pharmaceutical products. The instrument provides trace-level detection of metallic constituents and measures important low-mass elements in a single analytical session in a matter of minutes. More on the blog.

Smart-Buildings
ToF method for measuring distance between sensors and objects

Smart Buildings, Automation, Robotics

Increasing higher speed, longer range, lower weight and eye-safety for a customer, Quantum worked with this company to help develop next level technology. Needing a special board-level product for high precision timing generation and measurement, in a small and affordable form factor.
oem-laser-2
EDW-15 and EDW-25 Desktop Laser Welder

Equilasers Custom Laser System

A self-contained, compact system designed for precision welding. It delivers precise, low energy output with variable pulse widths and an extremely small spot size (down to 40 microns). Allows the user to manufacture miniature components for minimally invasive medical devices, embedded sensors, hard-drive components, and high-density electrical contacts.

qc-9730-current-generator
Airbag pyrotechnic initiator testing

Airbag Testing: Helping keep drivers safe

Working with the largest supplier of Airbags, they needed a custom unit to meet their demanding needs for Integrated Bridgewire Resistance Measurement.  To ensure each initiator works properly, so your Airbags will deploy when needed.  Certain features were key that were not out in the industry, Quantum worked closely to meet the needs of the client and the industry standards.

X-Ray-Controller
Flash X-ray systems for fast image capturing

X-Ray Controller

This OEM required a Trigger Amplifier, a Delay Generator, and a Pulsed Event Timer for their Flash X-ray systems.  The customer was using three units and wanted one unit to replace all three, using local and remote control.  Triggering a High voltage 2500V pulse, allowing user to delay firing and reliably measure time intervals between events.  This procedure is still used in a wide array of applications from, Hyper Velocity Impact Studies, Shaped Charge Jet Profiles, Explosively Formed Projectiles, X-ray crystallography and Ballistic Flight Dynamics to name a few.
oem-cellgen-small
Light-induced medical stimulation of cells

Cell Gen Medical Laser

Quantum Composers Custom Laser System - A laser system designed for therapy using light-induced bio-stimulation. With this, Quantum Composers has transitioned from the development and prototype phase into production and manufacturing for commercial distribution. The laser therapy process has already been used in the medical field with positive results in rehabilitation for a wide variety of injuries and ailments. This high-density laser therapy system is clinically proven to greatly improve recovery time through clinical trials.

oem-laser-1
Controllers for Solid State Lasers

System Analog System

Quantum Composers Custom Laser System Analog Modules, Inc. - Pulsed Flashlamp Drivers - AMI has developed a complete family of microprocessor-driven controllers for solid-state lasers. Based on a modular design approach, each controller is optimized for a given application or specific customer need. This series provides a capacitor charging power supply, fixed or variable pulse-forming networks, simmer supply, and all the electronic circuitry needed to drive flashlamps for pumping solid-state lasers.
