9420 Series

Digital Delay Pulse Generator

The Model 9420 Series Digital Delay-Pulse Generator with 2, 4 or 8 independent outputs is designed to provide cutting edge, yet cost-effective solutions to generate and synchronize multiple pulses for a wide range of applications. The delay and pulse width for each channel are independent and digitally controlled which makes the instrument ideal for situations that require synchronizing a number of different events.

Specifications

  • Channels: 2, 4 or 8 Independent Channel Outputs

  • Resolution: 10ns

  • Accuracy: 1ns + .0001 x period

  • Jitter: < 400 ps RMS

  • Memory: 12 Storage Slots

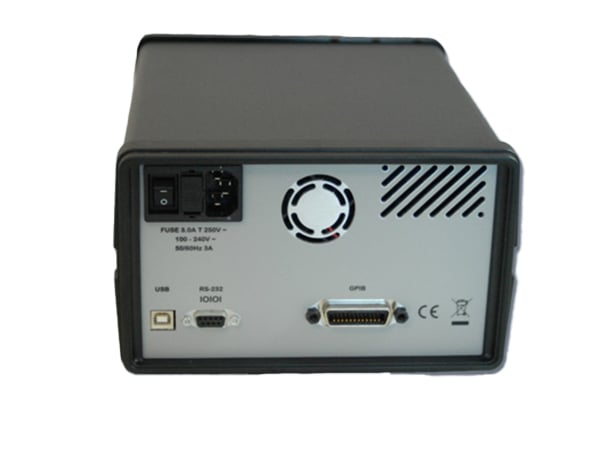

  • Comm Ports: USB, RS232, GPIB

Service Features
  • Rentals: Rental Instruments Available
  • Demo: 30 Day Demo Period
  • Warranty: Full 2 Year Warranty
  • Service: Integration Assistance, Full Customer Support.
9420 Delay Generators
9420_pulse_generator
9420 Delay Generator
QUICK SPEC MATCH:


  10ns Timing

 <400ps Jitter

  2, 4, or 8 Output Channels

*Customization & OEM Available
DOWNLOAD DATA:

9420 Series Interactive View

Copy of 9420_Standard_pulse_generator.png
Available in 2, 4, or 8 channels with channel options.

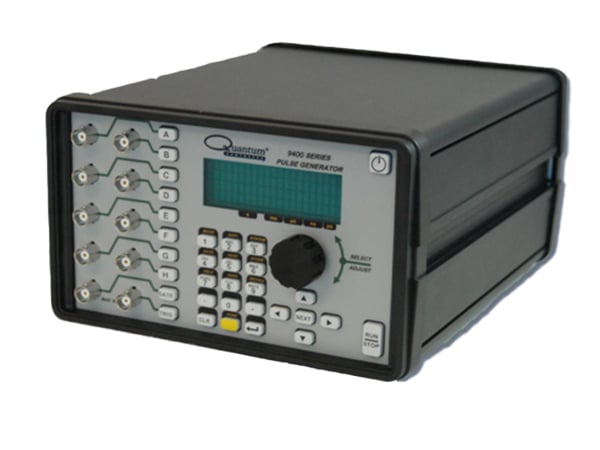

Benchtop- Flexible lab ready unit
Timing-400ps Timing Resolution.
