9200 Series

Digital Delay Pulse Generator

The Sapphire series represents a revolutionary new pulse generator technology that offers full function in a compact and cost effective package. At just 7.125“ x 5.1“ x 1.5” this is one of the smallest units available, but you will not be disappointed in its performance, features, or programmability. Finally, a low-cost pulse generator that does not skimp on performance or function. This instrument also has wireless capabilities (optional) via Bluetooth allowing you to communicate without a USB or RS232 connection. Another new feature, is you can power this unit with USB, freeing you from an extra cord.



  • Channels: 2, 4 or Independent Channel Outputs

  • Resolution: 10ns

  • Accuracy: 10ns + .0001 x setpoint

  • Jitter: < 500 ps

  • Memory: 6 Storage Slots

  • Comm Ports: USB, Bluetooth (Optional)


Service Features
  • Rentals: Rental Instruments Available
  • Demo: 30 Day Demo Period
  • Warranty: Full 2 Year Warranty
  • Service: Integration Assistance, Full Customer Support.
9200 Sapphire Pulse Delay Generator
9200 QC pulse generator
delay pulse generator
pulse generator back

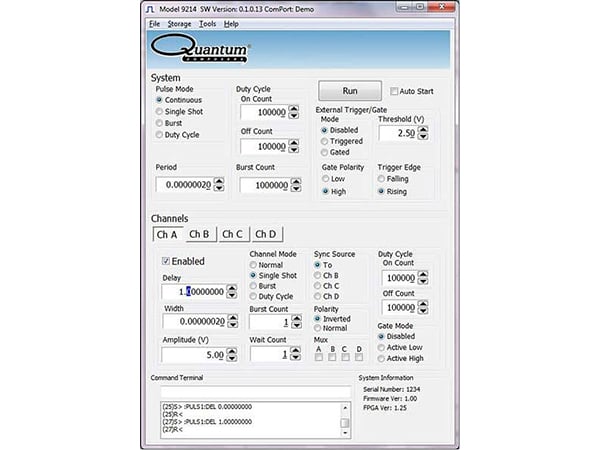

Pulse Delay Generator GUI

  10ns Timing

 <500ps Jitter

  2 or 4 Outputs

  50 Ohm Impedance Matching

*Customization & OEM Available

9200 Series Interactive View

Copy of 9200-Standard-pulse-delay-generator.png
Channels- 2-4 Fully Independent Channels
Compact- Easy programming via custom GUI Software
Timing-10ns Timing Resolution.
