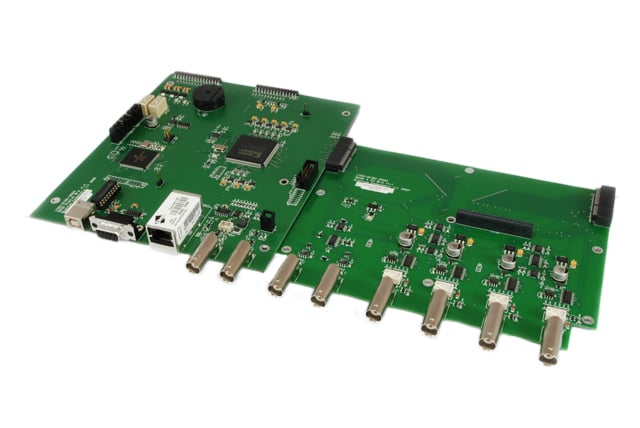

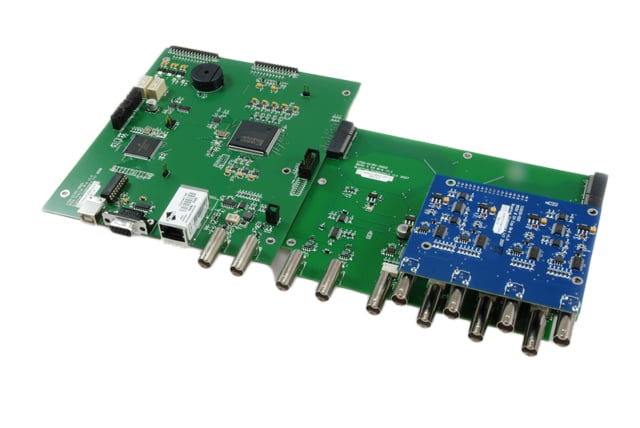

8500 Series

Board Level Pulse Generator

Quantum Composers now provides board level digital delay pulse generators. The 8500 series board products retain all functionality of the standard pulse generators in an easy to integrate package. These boards provide a cost-effective method to create and synchronize multiple sequences, delayed triggering, or any precisely timed series of events. We offer computer interfaces for ease of programming and full integration support.



Specifications: 8510 Series

  • Channels: 2, 4 or 8 Independent Channel Outputs

  • Resolution: 1ns

  • Accuracy: 1.5 ns + .0001 x setpoint

  • Jitter: < 400 ps

  • Memory: 12 Storage Slots

  • Comm Ports: USB, RS232, GPIB



Specifications: 8530 Series

  • Channels: 4 or 8 Independent Channel Outputs

  • Resolution: 250ps

  • Accuracy: 1 ns + .0001 x setpoint

  • Jitter: < 50 ps

  • Memory: 24 Storage Slots

  • Comm Ports: USB, Ethernet, RS232



Service Features
  • Rentals: Rental Not Available For This Model
  • Warranty: Full 2 Year Warranty
  • Service: Integration Assistance, Full Customer Support.
QUICK SPEC MATCH:

  1ns or 250 psTiming

 <400ps Jitter

  2, 4, or 8 Outputs

  Board level with optional power supply

*Customization & OEM Available
DOWNLOAD DATA:

8000 Series Interactive View
