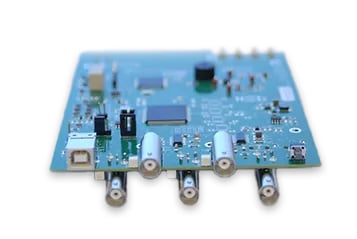

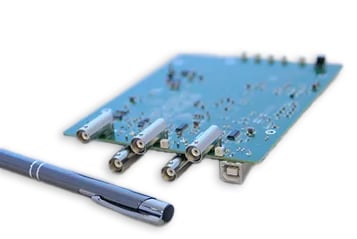

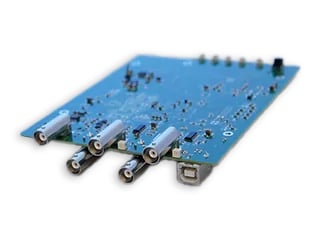

8200 Series
Board Level Pulse Generator
Quantum Composers now provides board level digital delay pulse generators. The 8200 series board products retain all functionality of the standard pulse generators in an easy to integrate package. These boards provide a cost-effective method to create and synchronize multiple sequences, delayed triggering, or any precisely timed series of events. We offer computer interfaces for ease of programming and full integration support.
![Group 37327](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/Group%2037327.jpg?width=600&height=450&name=Group%2037327.jpg)
![fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2%20copy.jpg?width=315&height=239&name=fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2%20copy.jpg)
![fe3f06_247c6030eb8b4628980774447b6702f0_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_247c6030eb8b4628980774447b6702f0_mv2%20copy.jpg?width=357&height=239&name=fe3f06_247c6030eb8b4628980774447b6702f0_mv2%20copy.jpg)
![fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2%20copy.jpg?width=357&height=239&name=fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2%20copy.jpg)
![Group 37327](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/Group%2037327.jpg?width=600&height=450&name=Group%2037327.jpg)
![fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2%20copy.jpg?width=315&height=239&name=fe3f06_729efad2ca614a32a13b50d390ac8e53_mv2%20copy.jpg)
![fe3f06_247c6030eb8b4628980774447b6702f0_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_247c6030eb8b4628980774447b6702f0_mv2%20copy.jpg?width=357&height=239&name=fe3f06_247c6030eb8b4628980774447b6702f0_mv2%20copy.jpg)
![fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2 copy](https://www.quantumcomposers.com/hs-fs/hubfs/Pulse%20Generators/fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2%20copy.jpg?width=357&height=239&name=fe3f06_2045f59a6e80471a823855cb4f8430f7_mv2%20copy.jpg)
- Channels: 2 or 4 Independent Channel Outputs
- Resolution: 10ns
- Accuracy: 10ns + .0001 x (width and delay)
- Jitter: < 50ps RMS (Channel to Channel)
- Memory: 6 Storage Slots
- Comm Ports: USB, Bluetooth (Optional)
- Channels: 2 or 4 Independent Channel Outputs
- Resolution: 5ns
- Accuracy: 5ns + 0.0001 x (width and delay)
- Jitter: < 50ps RMS (Channel to Channel)
- Memory: 6 Storage Slots
- Comm Ports: USB, Bluetooth (Optional)
- Warranty: Full 2-Year Warranty
- Service: Integration Assistance, Full Customer Support
- Demo: 30-Day Demo Period
- Rentals: Rental Not Available For This Model
Can upgrade from 8200 to 8200+ anytime
- Can be upgraded in the field, just contact us
- Resolution, rate, delay and width improved
- Additional: Virtual Channels, Trigger Functions
- System/Pulse Counter
- And more
