Laser Module X-Y Aperture

Compact Piezo Laser Modules

The Piezo motorized aperture module is offered for use in imaging systems for precise patterning. The laser module allows independent control of X, Y aperture size. The optional Theta configuration also rotates the aperture +/- 45°.

  • 5mm or 4.0mm Available
  • Optional Theta
    • -45 to +45 degrees
    • Backlash free, precise size and angle control
  • 20mm Beam Height
  • USB or RS232

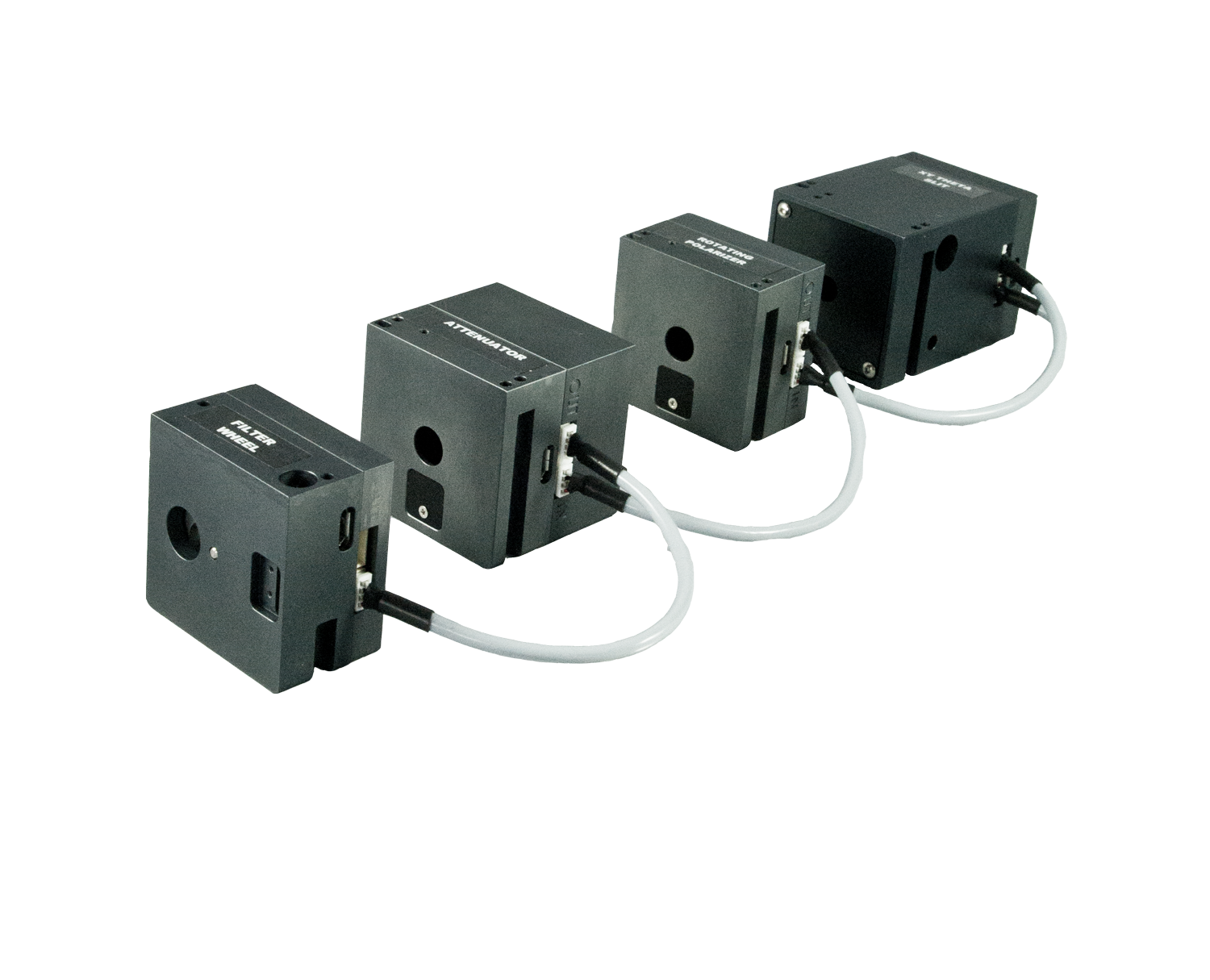

  • Can be Daisy-Chained
  • Compact
    • w/o Theta,  41mm x 41mm x 30mm
    • w/Theta, 41mm x 41mm x 60mm
  • Damage Threshold:    5 J/cm2
  • Tact Time:
    • X/Y ≤ 400ms, full range of motion
    • Theta  ≤ 600ms, 0 to ± 45°
  • Accuracy: ± (20µm + 0.004 * size)
  • Resolution:  2µm
  • Theta Slit (optional)
  • Accuracy: ± 1.0 degrees
  • Resolution: ≤ 0.5 degrees
  • Demo Units Available
  • Warranty: Full 2 Year Warranty
  • Service: Integration Assistance, Full Customer Support

Datasheet Coming Soon!

USB or RS-232 Controlled
2.5mm or 4mm
Optional Theta Slit
Tact Time: ≤ 400ms, full range of motion
