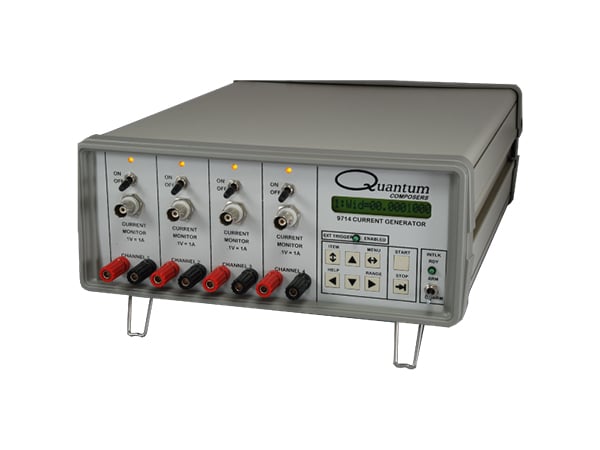

9710 Series

High Current Delay Generator

The 9710 Current Pulse Generator is an ideal fire set for airbag squib, detonator, and pyrotechnics initiator testing. The instrument provides adjustable current signals up to 25 amps. The unit comes with 2 or 4 digitally controlled load-resistant independent outputs. Output pulse widths and delays are unique to each channel and can be precisely controlled from 0.1 to 100 ms in 200 ns steps. The 9710 Current Pulse Generator also provides a TTL Sync output to T0 – particularly useful as a reference source/trigger for cameras or other equipment.

  • Channels: 2 or 4 Channel outputs
  • Amperage: Up to 25amps per channel
  • Package: Benchtop
  • Safety: TTL Sync Output to To Safety Interlock
  • Memory: 12 Storage Slots
  • Comm Ports: RS232, GPIB
  • Warranty: Full 2-Year Warranty
  • Service: Integration Assistance, Full Customer Support
  • Rental/Demo: Rental & Demo Available


Up to 25 Amps
12 Memory Slots
2 or 4 Outputs
